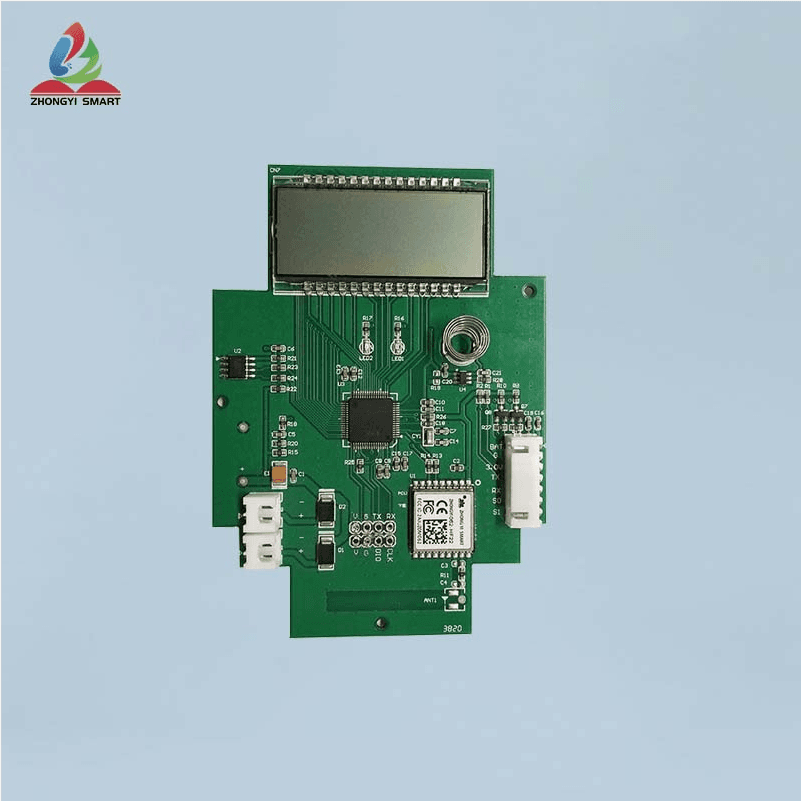

LORAWAN ultrasonic water meter communication modul
Low power consumption as low as 12-20 UA (sleep current), high cost performance, ultra-small size, high reliability (-40 To 85℃ temperature experiment), rich peripherals
1.Function
Measurement method | Ultrasonic dual channel |
Valve control | Open and close the valve remotely, open in place, close in place |
Anomaly alert | Abnormal fault reporting、Battery voltage alarm |
Valve alarm | Close half of the valve when valve goes wrong |
Battery voltage alarm | Alarm when power is lower than 10% |
ATC alarm | ATC alarm |
Countercurrent alarm | Countercurrent alarm |
Backup protection | Power is lower than 5%, backup power will start, and work continuously for 7 days |
Historical data storage | Store hourly, daily, and monthly data for 90 days |
Indicator light | Communication light、Trigger light |
Periodic reporting | Periodic reporting data |
Turn off pulse, turn off communication, and maintain ultra-low power operation | |
Strong magnetic interference | Close valve to protection when strong magnetic interference |
Wireless communication | Lorawan |
Verification mode | Calibration: flow L, pulse, flow rate L/h |
2.Advantage
Low power consumption as low as 12-20 UA (sleep current), high cost performance, ultra-small size, high reliability (-40 To 85℃ temperature experiment), rich peripherals |
3. Technical parameter
Supply voltage | Main power:3.6V Backup power:3.6V |
Power supply mode | Main power + Backup power |
Screen display | Electronic display, magnet switch screen |
Ambient temperature | -40 TO 85 |
External transport | Wireless communication, Lorawan works on ClassA,ClassB |
Motor port | Positive, negative, open in place, close in place |
External storage | 256K |
AT settings | Pin type(4 Pin) |
2-3KM | |
Spring button | Touch |
4.Specification
Sleep current | 12-20UA |
Communication current | 20MA |
Protocol | Big-end mode hexadecimal |
Indicator light | LED red green |
Display | Digital display |
Wireless communication | Lorawan low frequency、high frequency |
Frequency Range | EU433,CN470,EU86,IN868,AU915,US915,AS923 |
Uart | Four wire |
