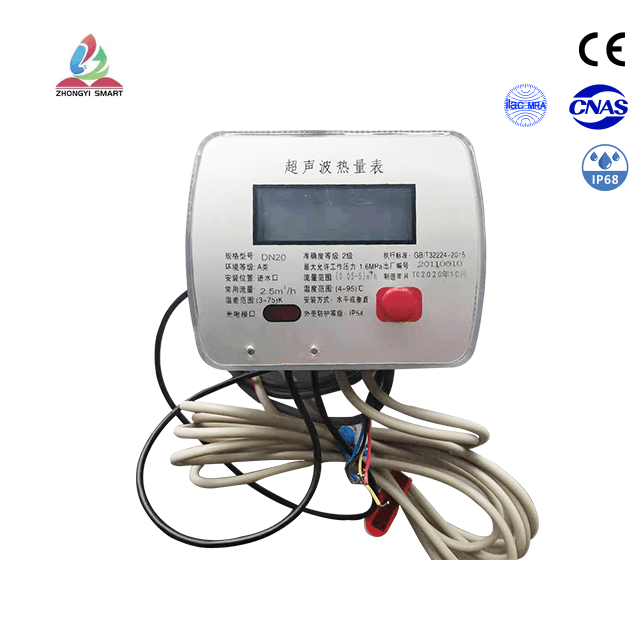

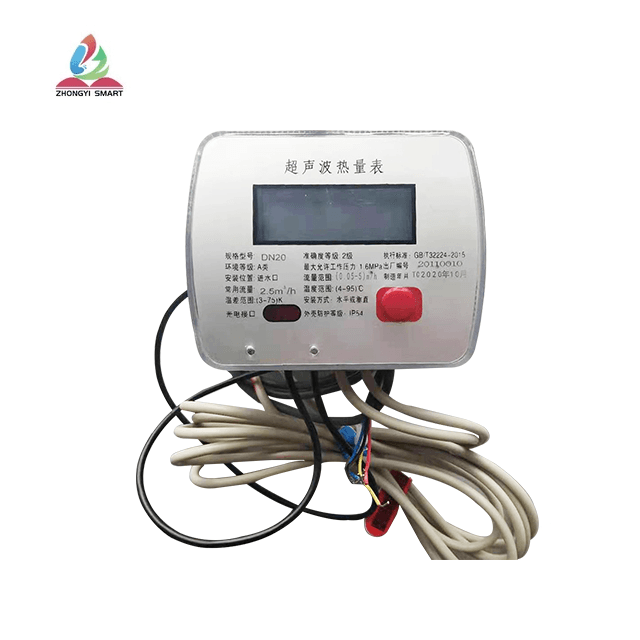

DN15/20 Domestic Ultrasonic Heat Water Meter
An ultrasonic heat meter is an instrument that measures flow using ultrasonic methods and displays the thermal energy released or absorbed as water flows through a heat exchange system. It calculates the heat quantity by measuring two physical quantities with sensors—the flow of the heat carrier and the inlet and outlet temperatures—followed by density and enthalpy compensation and integration calculation. It is an electromechanical product based on a microprocessor and high-precision sensors.
Introduction
Compared with the household meters—water meters, electricity meters, and gas meters—commonly used in the construction industry in the past, it features a more complex design and higher technical content. The ultrasonic heat meter is a high-tech product that integrates mechanical, electronic, and information technology, and has been successfully applied in many fields.
function
1. Can be installed horizontally or vertically.
2. High temperature measurement accuracy and long service life.
3. Can measure both heat and cold energy, and can also measure heat and cold energy simultaneously.
4. The flow meter emits pulse signals proportional to the flow.
5. A pair of temperature sensors provide analog signals representing the temperature.
6. The heat obtained by the heat exchange system is calculated using the accumulation formula.
Parameter
Key attributes
Industry-specific attributes
type
smart heat water
Other attributes
place of origin：Jiangsu, China
Warranty：1years
customized support：OBM
brand name：ZHONGYI
model number：DN15/20
Material：stainless steel and plastic
water temperature：4℃-95℃
hydraulic pressure：≤1.6Mpa
Range ratio：R80/R100
Minimum reading：0.0001
Maximum reading：99999
Protection grade：IP54
